Norton Paint System Spray Gun Adapters

Norton Paint System Adapters

Norton Paint System - Think Outside the Cup

• Distinctive unitized construction - spray in any position
• Cup can be removed during spraying for better maneuverability
• Collapsing liners will not leak even if cup is removed during spraying
• Consistent spray pattern
• Convenient paint storage
• Easy and clean disposal
• Use requires:
  • Lids, liners, rings, plugs - found in Norton Paint System Kits
  • Spray gun adapter - found in Norton Paint System Adapters
  • Measuring cup - found in Norton Paint System Accessories
  • Optional: Shaker cap, stir stick, liner dispenser, ring and lid dispenser - found in Norton Paint System Accessories
• For detailed information, please download the Norton Paint System PDF

Adapter

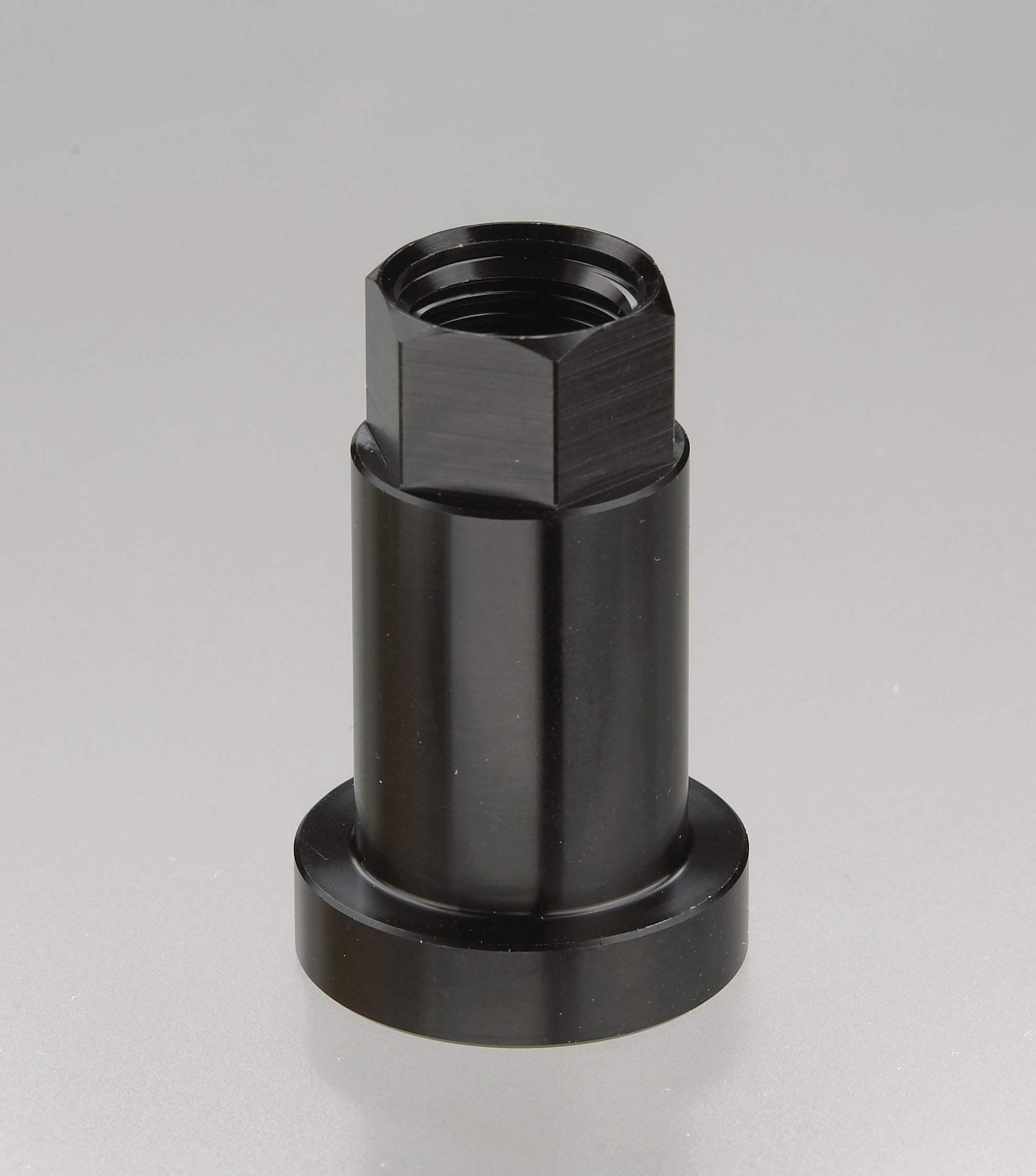

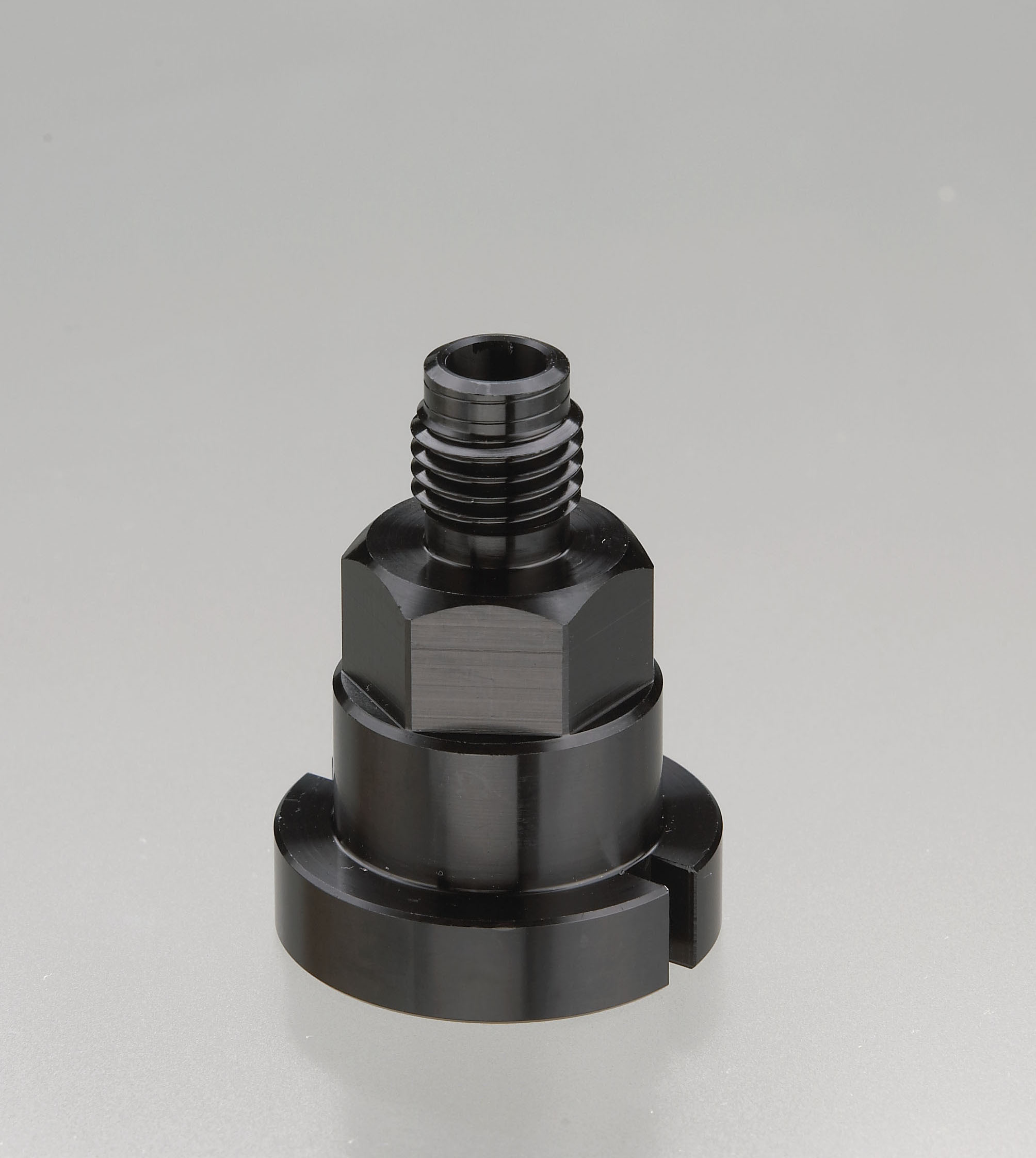

	2A	4A	5A	5A QuickConnect
Description	16mm Female, 1.5mm Thread	12mm Female, 1.0mm Thread	12mm Male, 1.5mm Thread	Use with 5A for SATA 3000
Common Guns	Iwata W 400, WR 400, LPA 94, LPH 400, LPH 440, VXL Primer Gun SATA SATAjet B, SATAjet B NR 92, NR 95 HVLP		Sagola 403 G, 433 G, 434 G, 444 G, 450 G, 4100 G, 4200 G, 4300 SATA LM B 92	SATA 3000 QuickConnect
Adapter

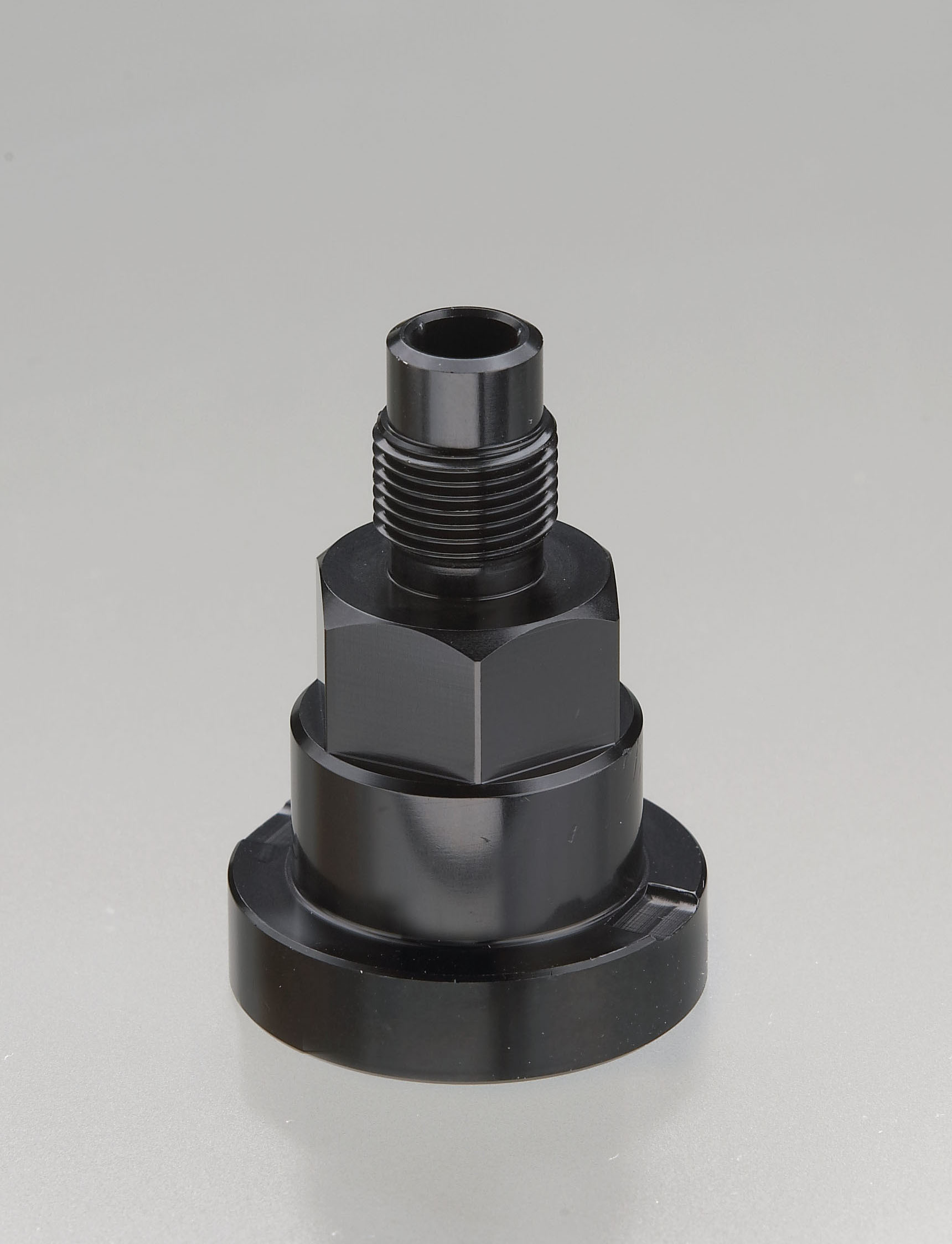

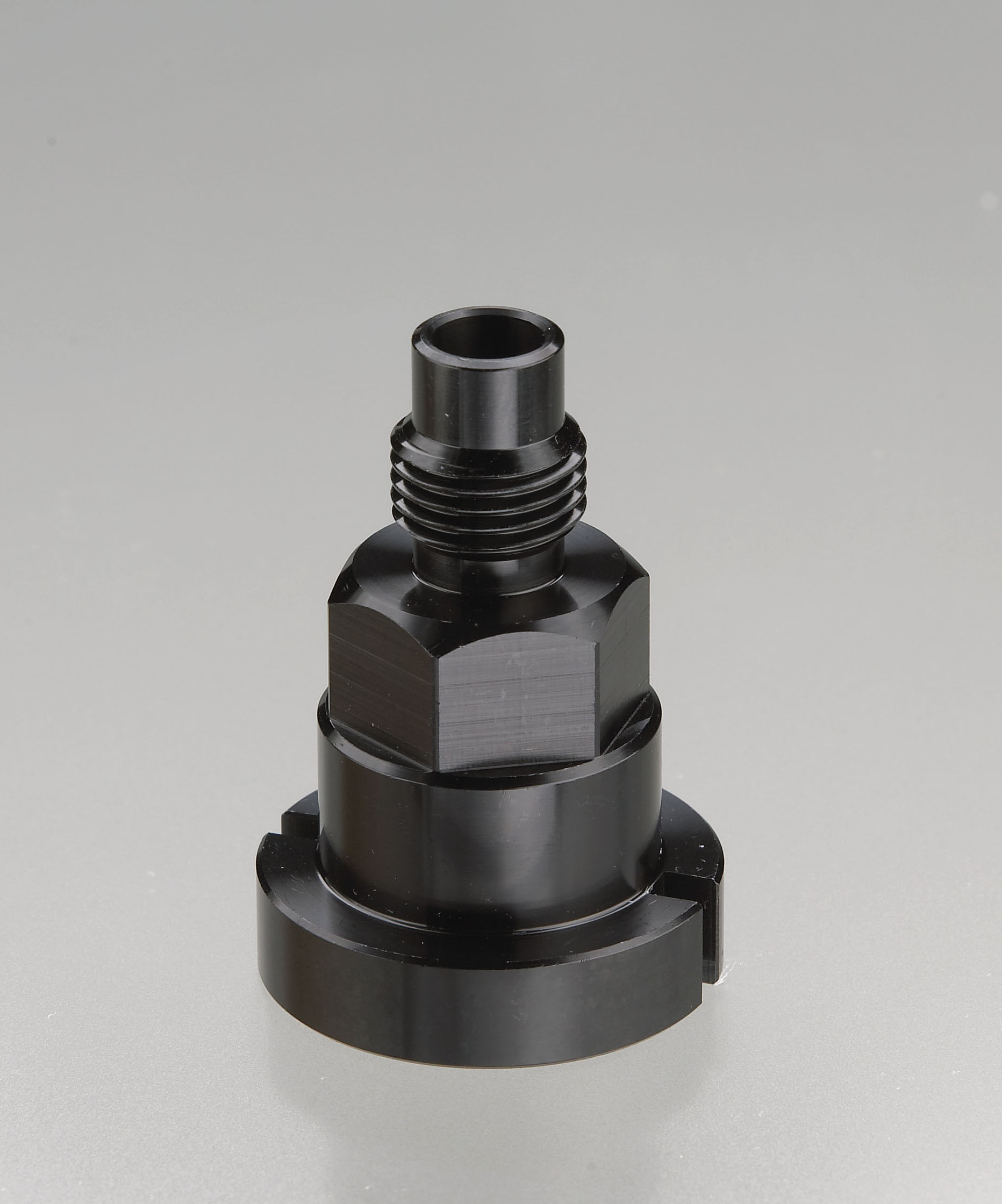

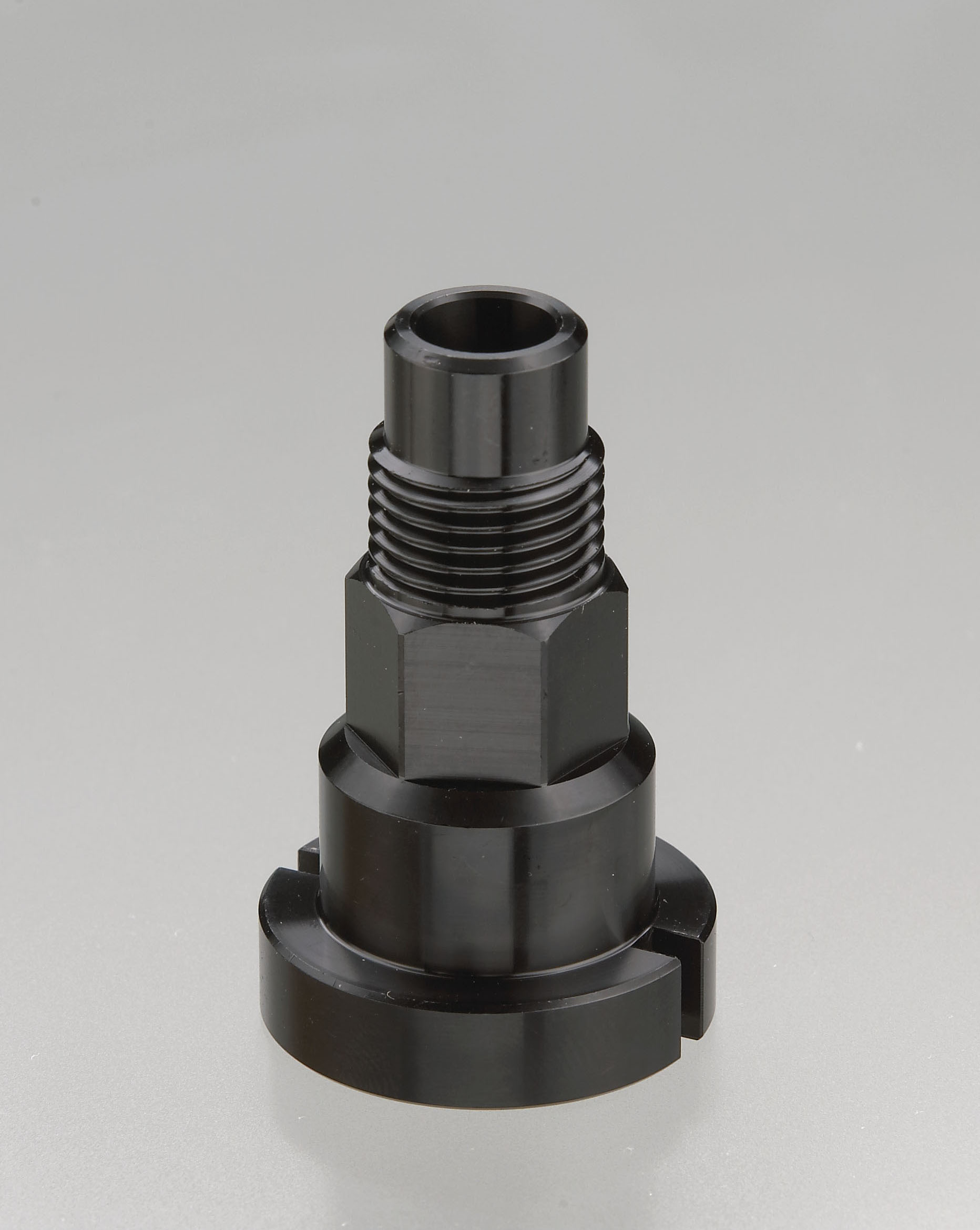

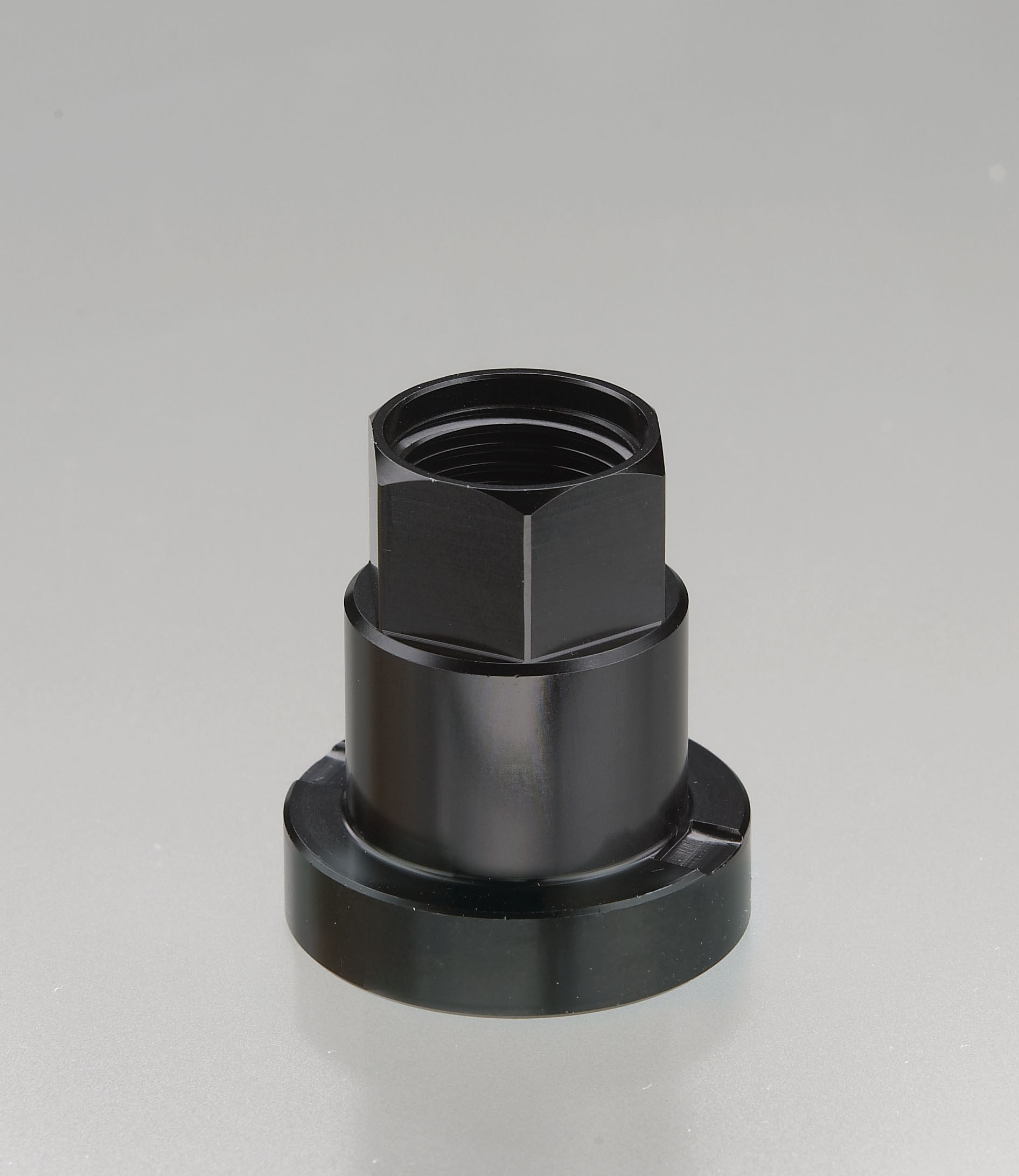

	6A	7A	8A	9A
Description	1/4 Male, 19 Thread (BSP)	3/8 Female, 18 Thread (BSP)	12mm Male, 1.0mm Thread	16mm Male, 1.5mm Thread
Common Guns	Asturo OM Green Eminent E13 Iwata W300, LPH 300 Kremlin M21G	Accuspray Isaac	Airgunsa AZ40 HTE Walcom FX Geo, FX HVLP	SATA SATAjet 200 HVLP w/o QCC, SATAjet RP w/o QCC, LM 2000 HVLP/RRP, KLC HVLP/RRP, KLC P, SATAjet 90
Adapter

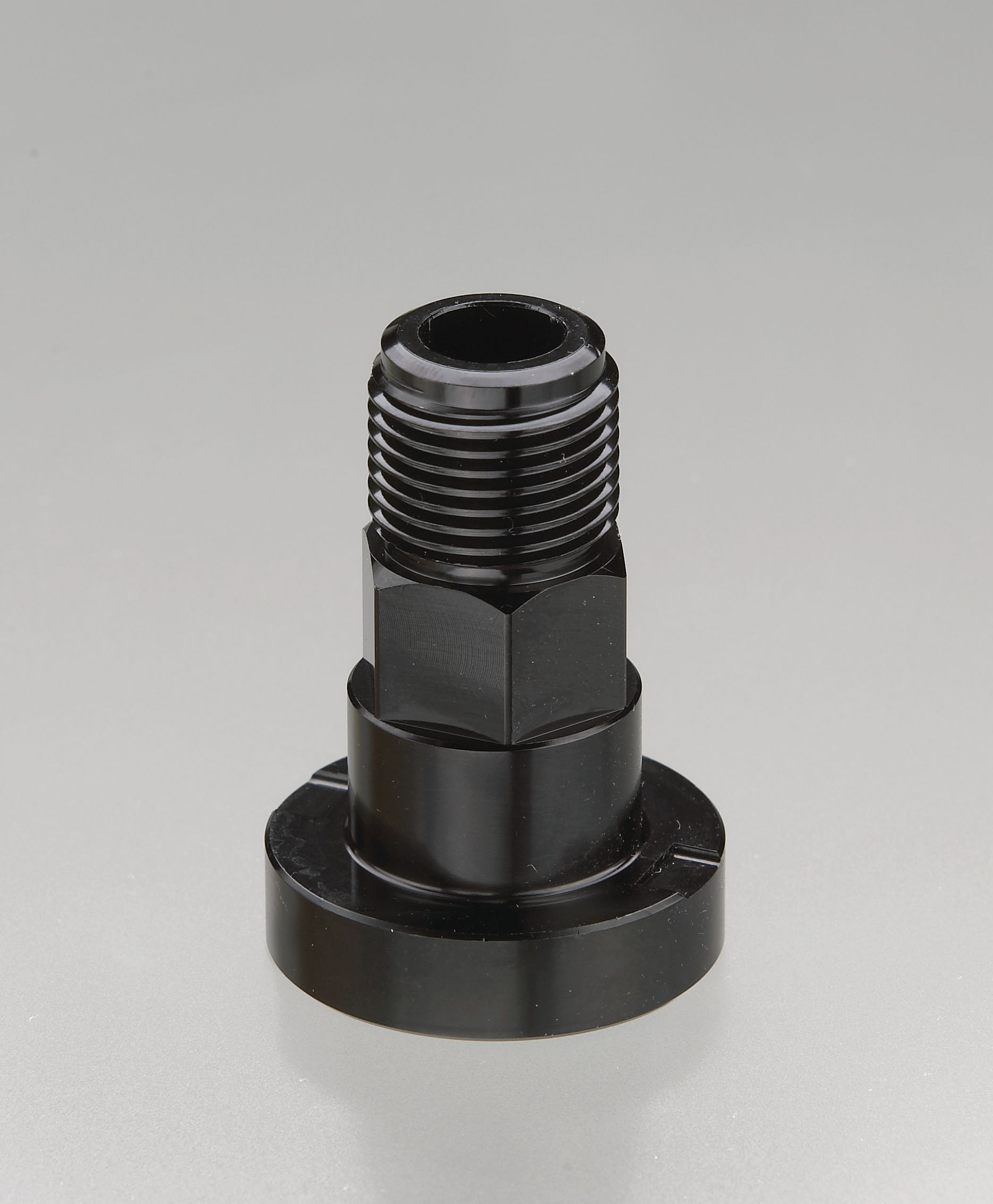

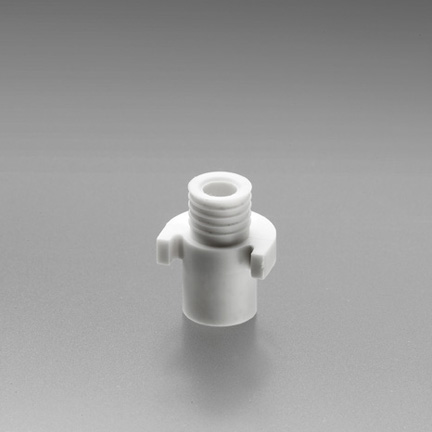

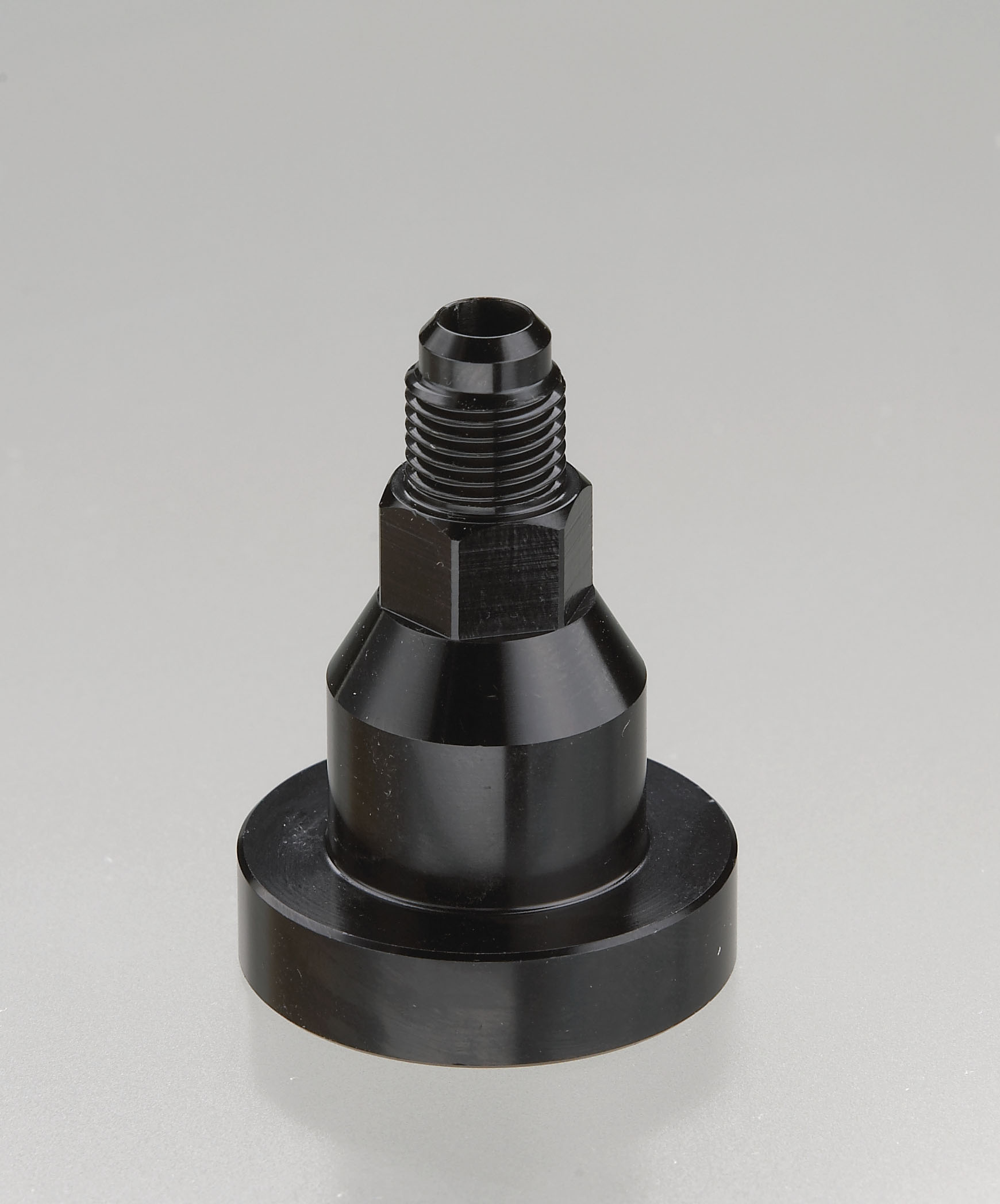

	10A	11A	12A	12A QuickConnect
Description	Elbow Swivel Nut, 1/4 Female, 19 Thread (BSP)	3/8 Male, 18 Thread (NPS)	10mm Male, 1.0mm Thread	Use with 12A for SATA Mini-Jet 4
Common Guns		Sharpe GT1, Platinum, Titanium, Cobalt, SGF 98	Sagola 475 Mini-Gun SATA Mini-Jet, Mini-Jet 2, Mini-Jet 3	SATA Mini-Jet 4 QuickConnect
Adapter

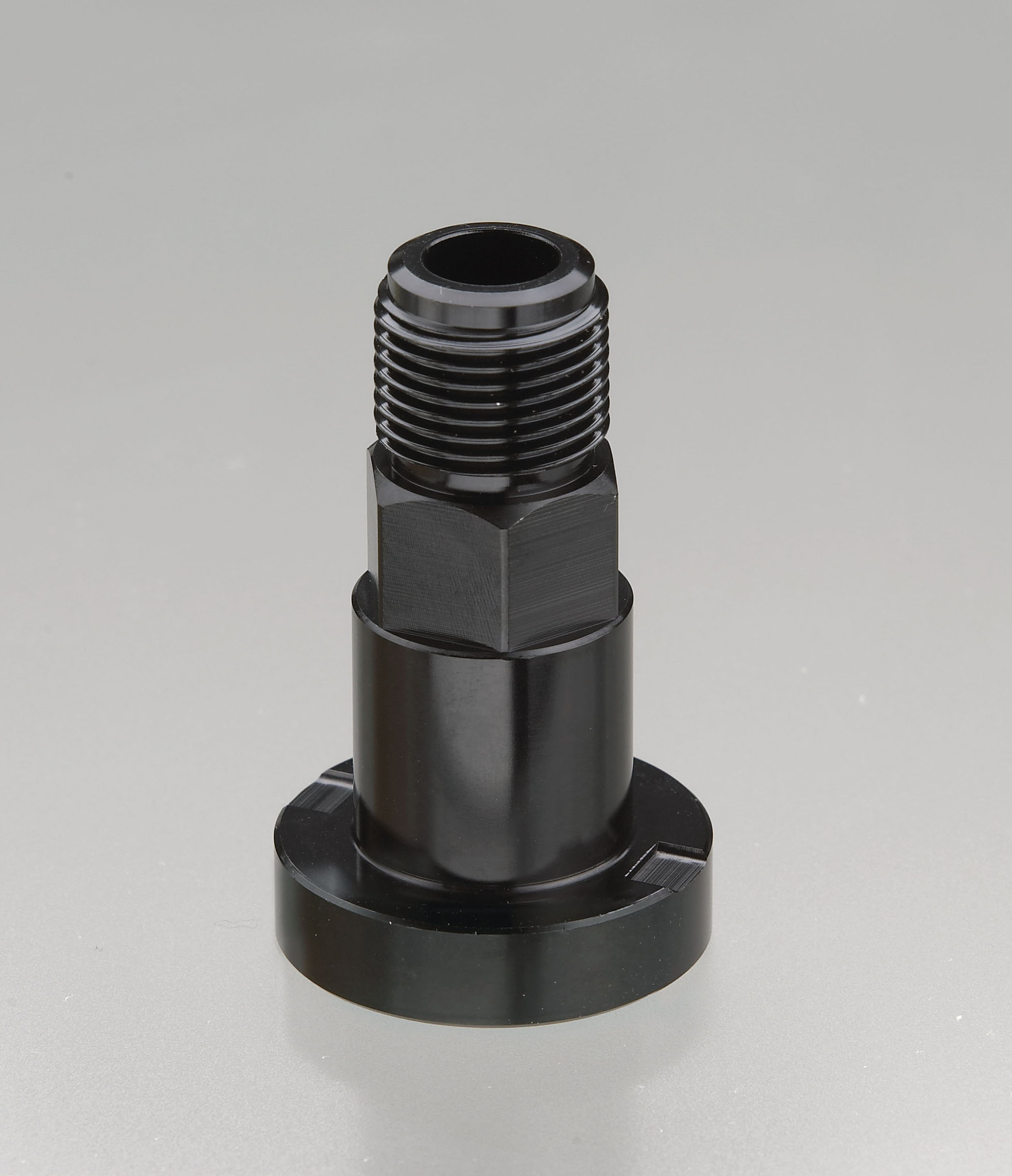

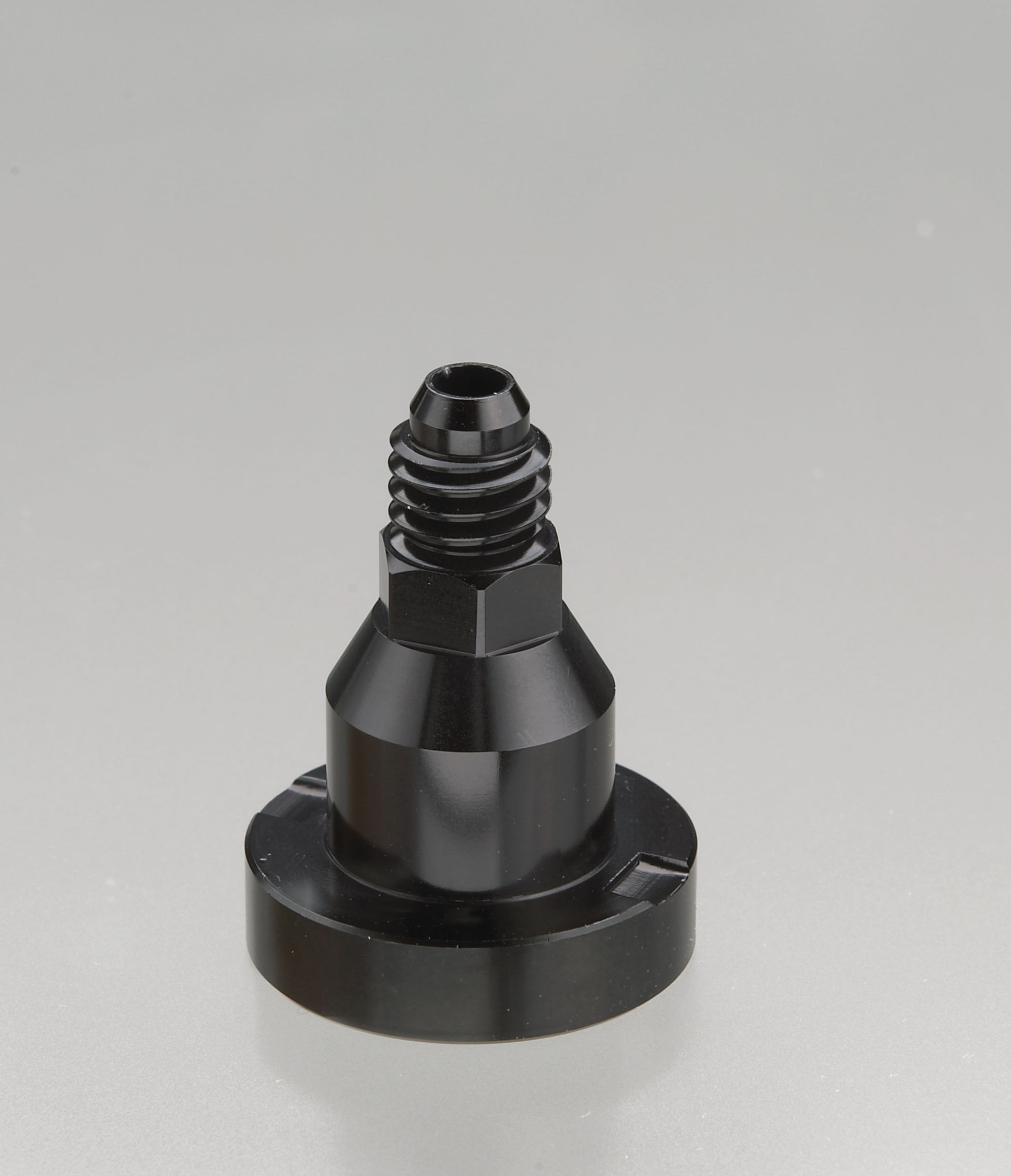

	14A	15A	16A	17A
Description	7/16 Male, 14 Thread (UNC)	3/8 Male, 19 Thread (BSP)	3/8 Female, 19 Thread (BSP)	1/4 Female, 19 Thread (BSP)
Common Guns		DeVilbiss PRI, GTI, GTI Pro, GFG, GFV, GFHV 510
Adapter

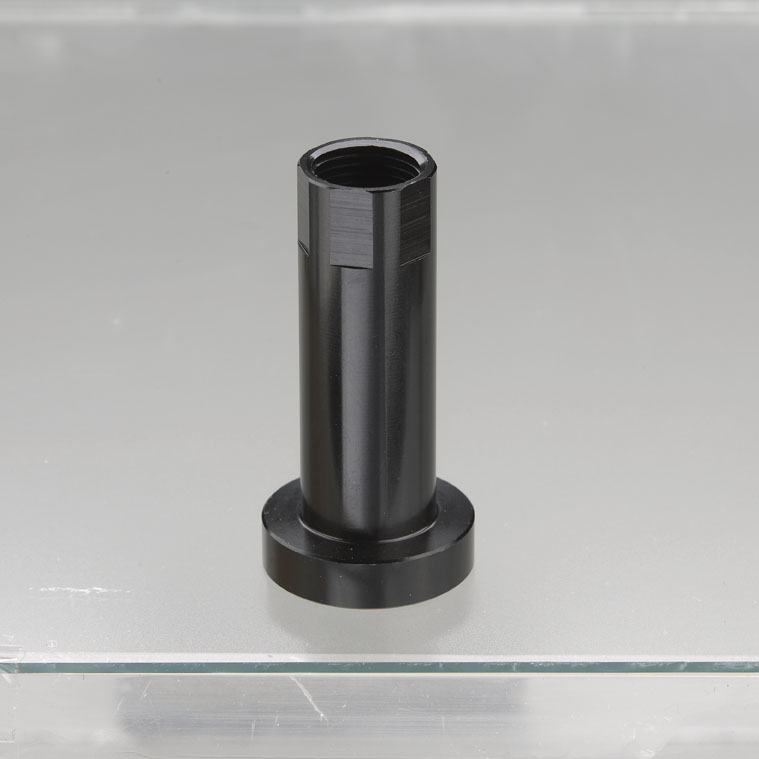

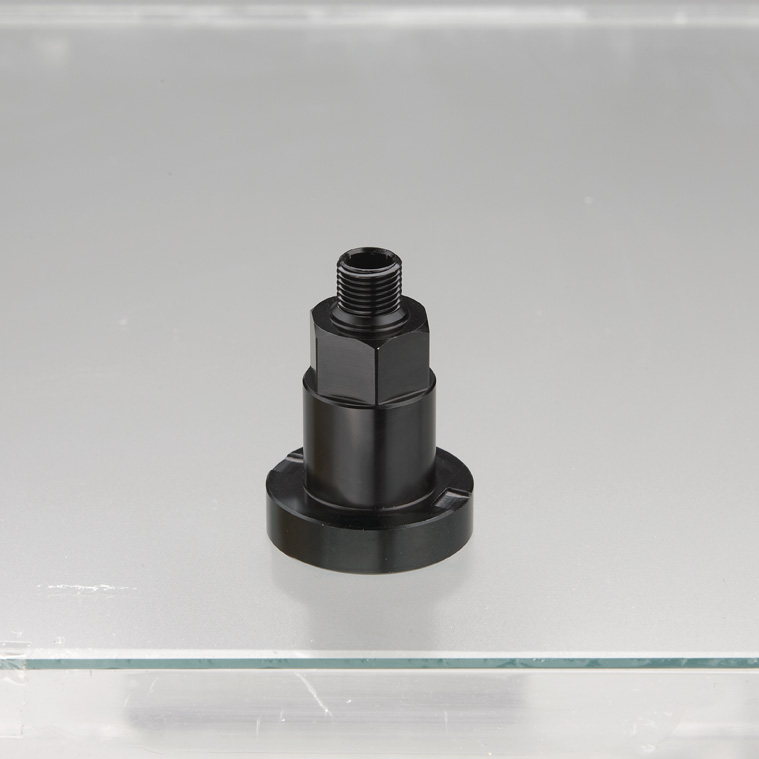

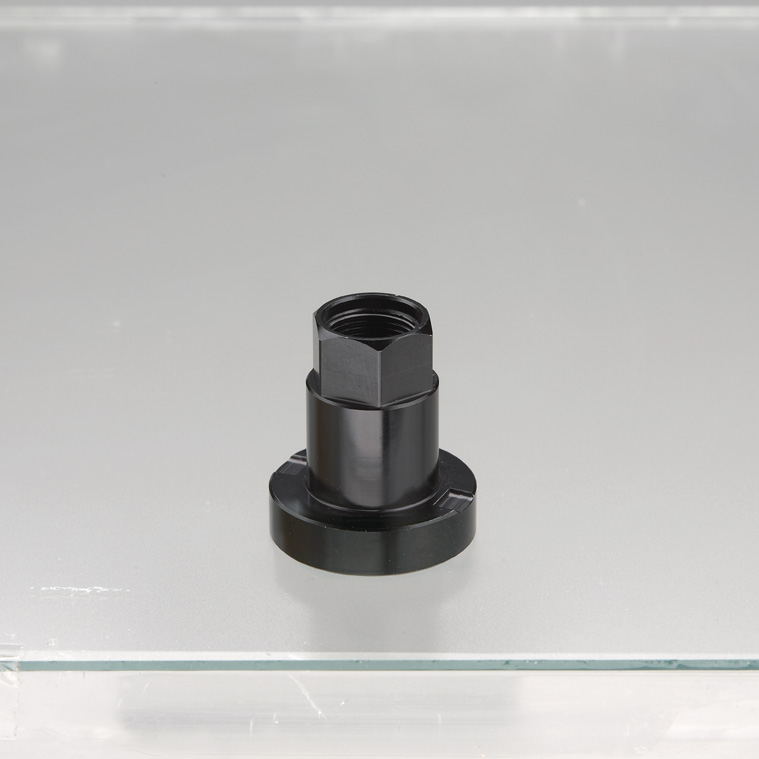

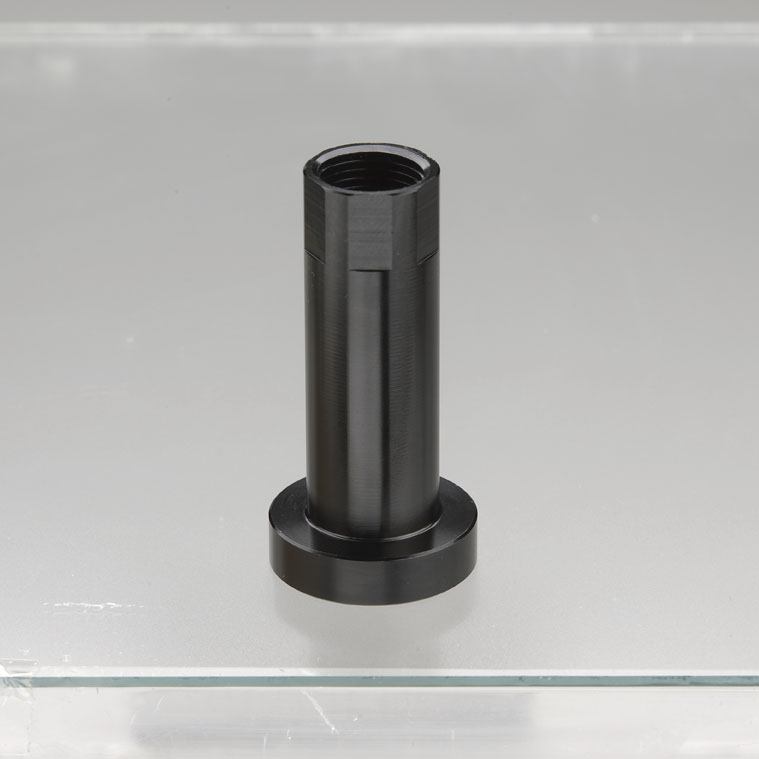

	18A	19A	20A	21A
Description	3/8 Female, 18 Thread (NPS)	3/8 Female, 19 Thread (BSP)	1/8 Male, 27 Thread (UPSM)	14mm Female, 1.0mm Thread
Adapter

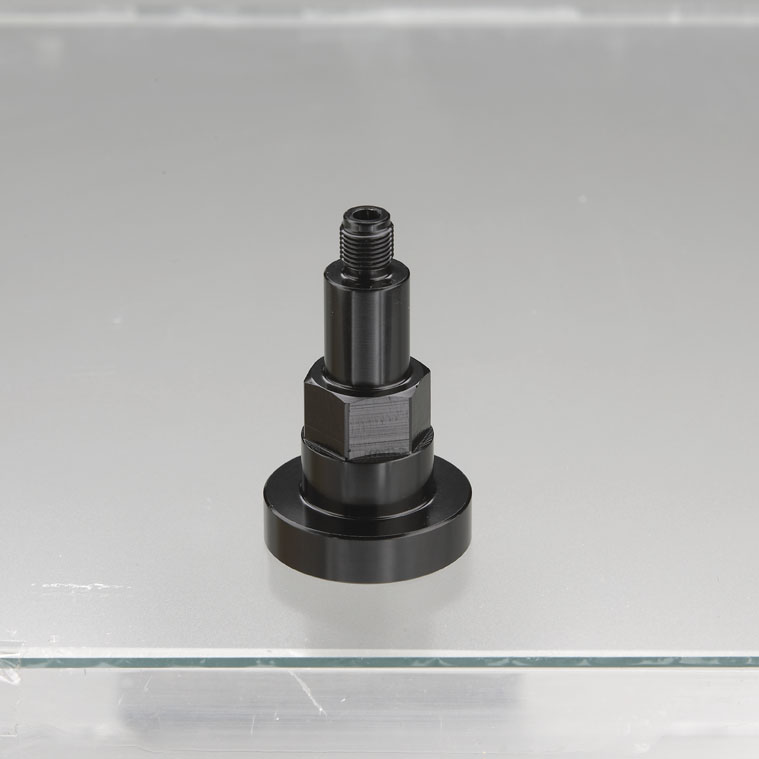

	22A	23A	24A	25A
Description	8mm Male, 0.75mm Thread	1/4 Female, 18 Thread (NPS)	Elbow Swivel Nut, 1/4 Female, 18 Thread (NPS)	1/4 Female, 19 Thread (BSP)
Adapter

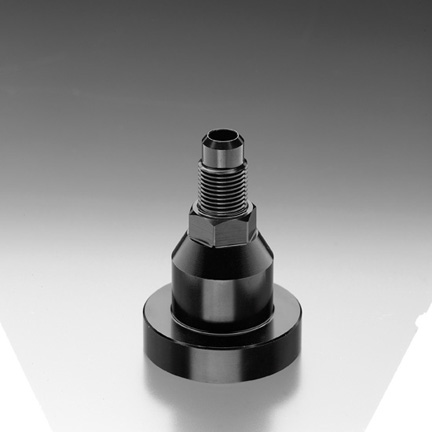

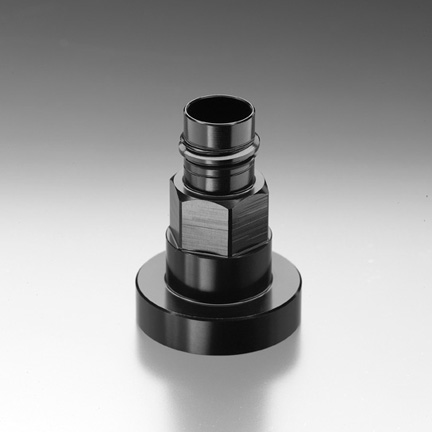

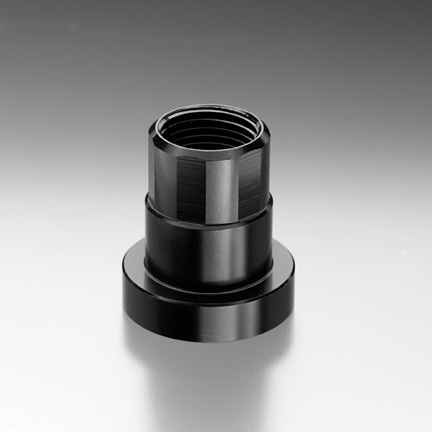

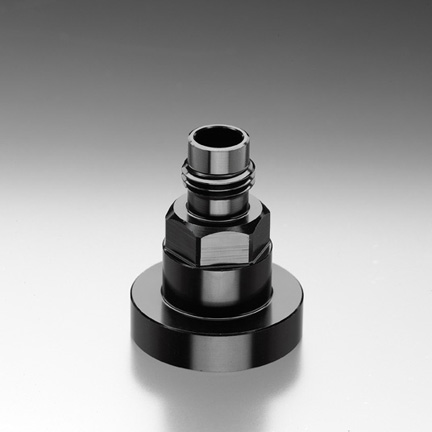

	31A	32A	37A	43A
Description	1/8 Male, 28 Thread	18mm Female, 1.5mm Thread	5/8-11 Modified Thread	(modified) 1/4 Male, 19 Thread (BSP)
