Schluter DILEX-AHK Anodized Aluminum Cove-Shaped Corner Profiles

Application and Function

Ceramic cove base represents a neat, hygienic method for treating transitions by providing a curved surface that prevents the collection of dirt and is easy to clean. However, the limited availability of ceramic trim pieces has resulted in the use of sealant and caulk to treat such transitions. These joints must be continually maintained throughout the life of the installation.

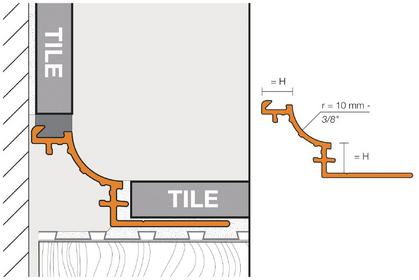

Schluter-DILEX-AHK features a single trapezoid-perforated anchoring leg, which is secured in the mortar bond coat and a cove section that forms the visible surface.

The profiles 3/8" (10 mm) radius makes DILEX-AHK an attractive option for countertop/backsplash transitions, as it prevents the accumulation of dirt and makes cleaning simple. The profile separates tile fields that meet at inside corners where limited movement is expected.

Schluter-DILEX-AHK prevents surface water penetration and meets the maintenance and hygienic requirements of commercial kitchens, bathrooms, and food-processing plants, or any tiled environment where a sanitary cove base is desired.

Schluter-DILEX-AHK is available in anodized aluminum. Accessories for DILEX-AHK include: inside and outside corners, connectors, and end caps.

Available Sizes and Materials

DILEX-HK Cove-shaped Profile.
Anodized Aluminum Finish	H = Tile thickness	Item No.
		Profile	Outside corner, 90	Outside corner, 135	Inside corner, 90	Inside corner, 135	End Cap	Connector
Satin (AE)	8mm-5/16"	AHK1S80AE	E90/AHK1S/AE	E135/AHK1S/AE	I90/AHK1S/AE	I135/AHK1S/AE	E/AHK1S/AE	V/AHK
	10mm-3/8"	AHK1S100AE
	12.5mm-1/2"	AHK1S125AE
Polished chrome (ACG)	8mm-5/16"	AHK1S80ACG	E90/AHK1S/ACG	E135/AHK1S/ACG	I90/AHK1S/ACG	I135/AHK1S/ACG	E/AHK1S/ACG
	10mm-3/8"	AHK1S100ACG
	12.5mm-1/2"	AHK1S125ACG
Brushed chrome (ACGB)	8mm-5/16"	AHK1S80ACGB	E90/AHK1S/ACGB	E135/AHK1S/ACGB	I90/AHK1S/ACGB	I135/AHK1S/ACGB	E/AHK1S/ACGB
	10mm-3/8"	AHK1S100ACGB
	12.5mm-1/2"	AHK1S125ACGB
Satin nickel (AT)	8mm-5/16"	AHK1S80AT	E90/AHK1S/AT	E135/AHK1S/AT	I90/AHK1S/AT	I135/AHK1S/AT	E/AHK1S/AT
	10mm-3/8"	AHK1S100AT
	12.5mm-1/2"	AHK1S125AT
Polished nickel (ATG)	8mm-5/16"	AHK1S80ATG	E90/AHK1S/ATG	E135/AHK1S/ATG	I90/AHK1S/ATG	I135/AHK1S/ATG	E/AHK1S/ATG
	10mm-3/8"	AHK1S100ATG
	12.5mm-1/2"	AHK1S125ATG
Brushed nickel (ATGB)	8mm-5/16"	AHK1S80ATGB	E90/AHK1S/ATGB	E135/AHK1S/ATGB	I90/AHK1S/ATGB	I135/AHK1S/ATGB	E/AHK1S/ATGB
	10mm-3/8"	AHK1S100ATGB
	12.5mm-1/2"	AHK1S125ATGB
Satin copper/bronze (AK)	8mm-5/16"	AHK1S80AK	E90/AHK1S/AK	E135/AHK1S/AK	I90/AHK1S/AK	I135/AHK1S/AK	E/AHK1S/AK
	10mm-3/8"	AHK1S100AK
	12.5mm-1/2"	AHK1S125AK
Polished copper/bronze (AKG)	8mm-5/16"	AHK1S80AKG	E90/AHK1S/AKG	E135/AHK1S/AKG	I90/AHK1S/AKG	I135/AHK1S/AKG	E/AHK1S/AKG
	10mm-3/8"	AHK1S100AKG
	12.5mm-1/2"	AHK1S125AKG
Brushed copper/bronze (AKGB)	8mm-5/16"	AHK1S80AKGB	E90/AHK1S/AKGB	E135/AHK1S/AKGB	I90/AHK1S/AKGB	I135/AHK1S/AKGB	E/AHK1S/AKGB
	10mm-3/8"	AHK1S100AKGB
	12.5mm-1/2"	AHK1S125AKGB
Satin brass (AM)	8mm-5/16"	AHK1S80AM	E90/AHK1S/AM	E135/AHK1S/AM	I90/AHK1S/AM	I135/AHK1S/AM	E/AHK1S/AM
	10mm-3/8"	AHK1S100AM
	12.5mm-1/2"	AHK1S125AM
Polished brass (AMG)	8mm-5/16"	AHK1S80AMG	E90/AHK1S/AMG	E135/AHK1S/AMG	I90/AHK1S/AMG	I135/AHK1S/AMG	E/AHK1S/AMG
	10mm-3/8"	AHK1S100AMG
	12.5mm-1/2"	AHK1S125AMG
Brushed brass (AMGB)	8mm-5/16"	AHK1S80AMGB	E90/AHK1S/AMGB	E135/AHK1S/AMGB	I90/AHK1S/AMGB	I135/AHK1S/AMGB	E/AHK1S/AMGB
	10mm-3/8"	AHK1S100AMGB
	12.5mm-1/2"	AHK1S125AMGB

Click to view images of available finishes.

Installation

1. Select Schluter-DILEX-AHK according to tile thickness.
2. Using a notched trowel, apply thin-set mortar to the area where the profile anchoring leg is to be placed.
3. Press the perforated anchoring leg of the profile into the mortar and align.
4. Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.
5. Solidly embed the tiles so that the tiled surface is flush with the exposed surface of the profile. Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" - 1/8" (1.5 mm - 3 mm).
6. Trowel thin-set mortar over the adjoining surface where tile is to be placed.
7. Solidly embed the tiles so that the tiled surface is flush with the exposed surface of the profile. Leave a space of approximately 1/16" - 1/8" (1.5 mm - 3 mm) between the tile edge and the profile.
8. Fill the joints completely with grout or setting material.

Material

Schluter-DILEX-AHK is available in anodized aluminum.

In special cases, the suitability of a proposed type of material must be verified based on the anticipated chemical, mechanical, and/or other stresses.

Schluter-DILEX-AHK, in anodized aluminum, features an anodized layer that retains a uniform appearance during normal use. The surface, however, is susceptible to scratching and wear and may be damaged by grout or setting material. Cementitious materials, in conjunction with moisture, become alkaline. Since aluminum is sensitive to alkaline substances, exposure to the alkali (depending on concentration and duration of exposure) may result in corrosion (aluminum oxide formation). Therefore, it is important to remove mortar or grout residue immediately from visible surfaces. In addition, ensure that the profile is solidly embedded in the setting material and that all cavities are filled to prevent the collection of alkaline water.

Maintenance

Schluter-DILEX-AHK requires no special maintenance or care and is resistant to mold and fungi. Clean profile using common household cleaning agents. Do not use abrasive cleaning agents.
