Mark E Quick-Pitch Shower Floor Standard Kit

E Quick-Pitch Shower Floor Standard Kit by Mark E.

$38.77


Mark E Quick-Pitch Shower Floor Standard Kit -- 6 Standard 36" Float Sticks and small Center Ring

  • The Quick Pitch Float Stick System for easy construction of shower floors
  • Eliminates the need for measurements or levels to achieve a properly sloped shower floor
  • Includes 6 Standard Float Sticks, 1 Standard Center Ring

This is sufficient for CENTER drain locations - if you have an offset drain location, you'll need Extension Quick Pitch sticks in addition to this kit. Also, MarkE says this kit is sufficient for 36" x 60" configurations. However, most installers prefer to keep spans to 24" so we recommend that you add two additional Standard Quick Pitch sticks to give you a total of 8.

Many Showers need more components (like extra pitch sticks and extended pitch sticks) than just this basic kit for smaller showers. Please call one of our consultants to get a complete list of needed items related to your specific installation

There are a lot of misleading videos and other information out there that claim you can lay the rubber liner flat. The rubber liner should ALSO have a slope under it for legal (code) and practical reasons. Mark E Industries makes a kit specifically for that phase called Pre-Pitch. Many installers will perform the pre-pitch by hand (since that slope is under the liner) and rely on the Quick-Pitch set for the tile layer.

Mark E Quick-Pitch Shower Floor Standard Kit

Quick Pitch Installation Is Easy

Quick Pitch is a revolutionary product that simplifies mortar bed installation. In order to install a proper shower floor, the base of the shower has to have a proper slope for drainage. With Quick Pitch, this is easily accomplished.

The Standard Kit permits construction of standard 36" x 60" shower areas with a centered drain, as well as or custom shower areas where the drain is within 36" of each wall. This system does not add to the pan liner pre-slope, as the Center Ring sits on top of the drain flange bolts.

Quick Drain Shower with Noble Seal Liner Using Quick Pitch

The Quick Pitch Float Stick System permits easy construction of shower floors with the proper minimum water drainage slope of 1/4" per 12" run. With this time-saving system, there is now no chance for an error in measurement and no need for a level to achieve a properly sloped shower floor. The Quick Pitch Float Stick System uses a Center Ring and tapered Float Sticks to assure the correct drainage slope in standard or custom shower areas with walls up to 6' in any direction from the floor drain.

Custom Shower Floor Construction

Roll-On Liners with Quick Pitch and Quick Pitch Universal Center Ring

The Quick Pitch Float Stick System is available in component form for custom shower applications. The three components include:

  • QPCR-104 Quick Pitch Center Ring (35/8" inside diameter x 1" high)
  • XFS-101-2 Quick Pitch Standard Float Sticks (1" to 13/4" taper x 36" long)
  • EFS-103 Quick Pitch Extended Float Sticks (13/4" to 21/2" taper x 36" long)

Standard Shower Floor Construction

Schluter Kerdi and Drain Using Quick Pitch

The No. QPK-101 Quick Pitch Standard Kit permits construction of standard 36" x 60" shower areas with a centered drain, or custom shower areas where the drain is within 36" of each wall. Included in each package is one each Center Ring and 6 each Standard Float Sticks (1" to 13/4" taper x 36" long) that attach in any of the 24 slots on the Center Ring.

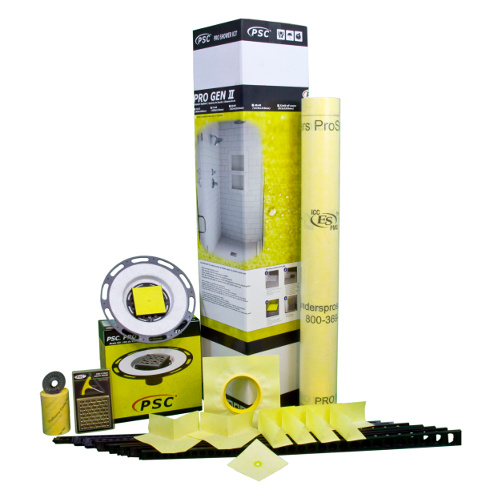

Looking for Customizable Complete Shower Kits with Everything You Need?

PSC Pro GEN 2 Mud Kits have got you covered!

  • Single layer mud floor using the Quick-Pitch system (no Pre-Pitch required)
  • Floor and wall waterproofing included
  • Gen II Drain included - for easiest construction
    • Numerous grate style/color options
    • Integrated hair trap
  • Can be modified to support any shower size or shape
  • Rated for steam showers
